XMS6302
|
XMS6302-LX75 XC6SLX75-2I,256-MiB |
|
|
BRK6302 XMS6302 Breakout Board |
|

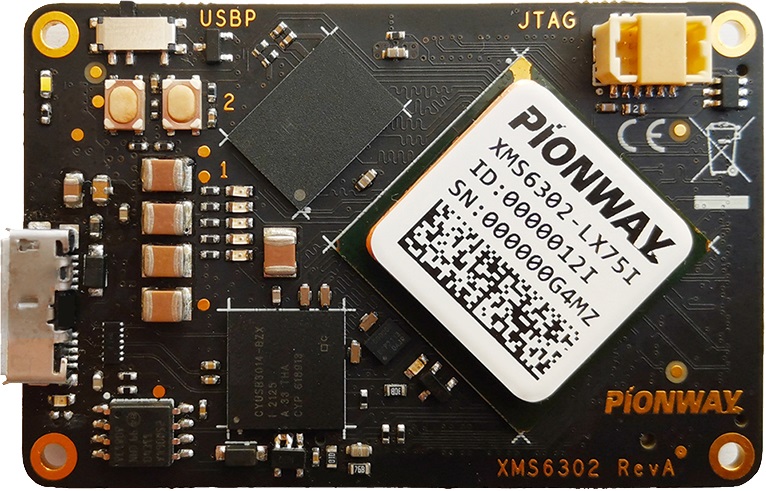

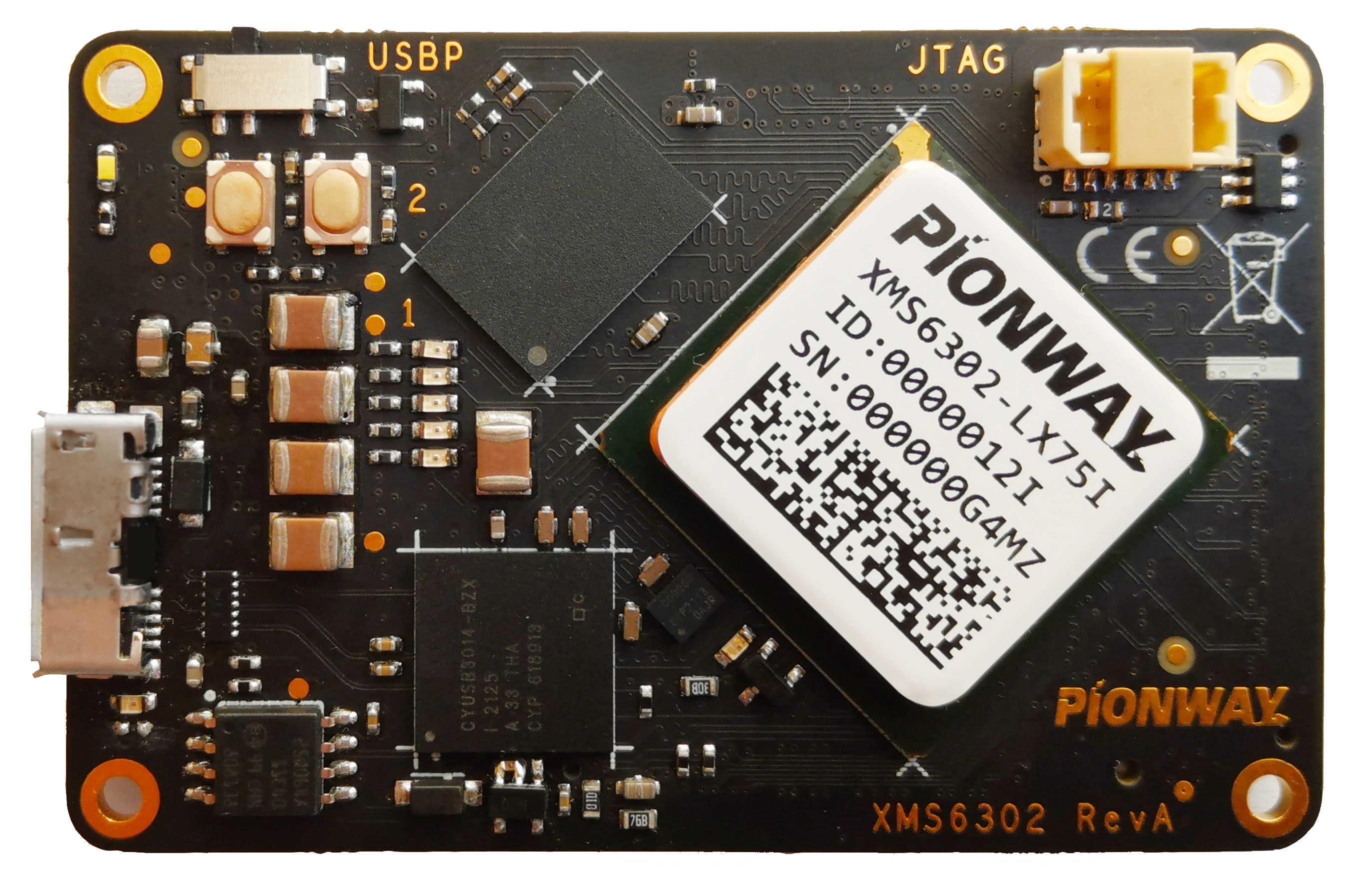

The Pionway XMS6302 is an FPGA integration module built around the Xilinx Spartan-6 FPGA, offering over 11,662 logic slices (4× LUT + 8× DFF), 132 DSP slices, and 172 18Kb block RAMs. Its onboard USB 3.0 SuperSpeed interface handles both FPGA configuration downloads and runtime host communication, supporting near-instant FPGA reprogramming along with sustained data transfer rates of 340+ MiB/s between the FPGA and PC via the Pionway SDK.
Pionway SDK
Pionway SDK is the host-side toolkit for the XMS6302: driver, API library, and matching FPGA-side IP that together manage USB enumeration, configuration downloads, and runtime data transfer. It gives your application a stable, well-documented interface to the module so your team can spend its time on the FPGA design and application logic instead of the low-level USB plumbing.
From Evaluation to OEM Production
Because the XMS6302 hardware, Pionway SDK, and reference designs are developed as one package, a design that starts on the bench as a quick proof-of-concept can carry forward into an OEM product with little rework of the host-side software. Volume pricing and long-term supply support make it a practical fit once a project moves past prototyping.
Block Diagram
256 MiB DDR2
256 MiB of onboard DDR2 gives your design local working memory for frame buffering, streaming capture, or other high-throughput workloads, without needing to round-trip through the host PC.
HIGH-EFFICIENCY POWER SUPPLIES
Onboard switching regulators supply clean, regulated power to the FPGA and module peripherals, with headroom left over to power a modest amount of external logic on your carrier board.
SUPERSPEED USB 3.0
In bench testing, the XMS6302 sustains PC-to-FPGA transfer rates above 340 MiB/s under typical operating conditions.
BOOTABLE SERIAL FLASH (2x 8 MiB)
Two 8 MiB serial flash devices are onboard: one dedicated to FPGA configuration for standalone boot, and a second available to your application for general nonvolatile storage.
Applications
- Image or video capture / processing
- Data acquisition
- ASIC / hardware-based simulation and verification
- Bioinformatics (DNA search and pattern matching)
- Digital communications
- High-speed USB / FPGA co-processor
- Evaluation platform for your product
- Custom test equipment
- Cryptography
- Data Security
Customer Deployments
- CMOS image sensor test equipment
- Radar system - test interface, system integration, field testing
- Evaluation platform for semiconductors
- Bioinformatics co-processors
- Camera interface for IR and LIDAR 3D cameras
- Equipment for analyzing satellite imagery
- Design of equipment for mineral exploration
- University research
- University classroom design projects
| FPGA | XMS6302-LX75 | |
|---|---|---|
| Interface Measured Performance |
USB 3.0 SuperSpeed 340+ MiB/s |
|
| FPGA Minimum Xilinx Tools Required |
XC6SLX75-2 ISE Logic Edition |
|
| Slices | 4 6-LUT, 8 DFF | |
| Slices | 11,662 (93,296 DFFs) | |
| FPGA RAM | 3,096 Kib BlockRAM 692 Kib Distributed |
|
| MULT/DSP | 132 | |
| MCB | ✓ | |
| PLLs | ✓(6CMT) | |
| DDR2 Banks,Width,Peak Bandwidth |
256 MiB one, x16, 10 Gb/s |
|
| System Flash FPGA Bootable? |
8 MiB No |
|
| FPGA Flash FPGA Bootable? |
8 MiB Yes |
|
Technical Specifications and Support
Features & Specifications
- Xilinx Spartan-6 (XC6SLX75-2FGG484I)
- 2x 8-MiB serial flash(Numonyx N25Q128A)
- 256-MiB DDR2 (Micron MT47H128M16RT-25E)
- Smaller than a credit card at 64mm x 42mm x 9.8mm (2.52" x 1.65" x 0.39")
- SuperSpeed USB 3.0 interface (Cypress FX3) for configuration and data transfer
- Measured performance over 340 MiB/s
- Self-powered by external Board to Board or USB Connector
- Low-jitter 100 MHz MEMS clock oscillator
- five LEDs
- 136 user I/O and 16 GCLK pins on expansion connectors
- Independent access to VCCO bank voltages
- JTAG pins available on the expansion connectors
- Full Pionway SDK support
- Application Programmer's Interface (API) in C, C++
